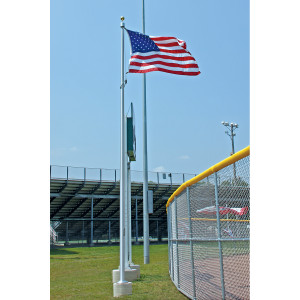

Vanguard Aluminum Flagpole - Internal Halyard with Cam Cleat
Equipped with a cam cleat instead of a winch, this flagpole offers the benefits of an internal halyard at a more affordable price.
- 100% MADE IN THE USA - Not just assembled in the USA but manufactured here, too.
- STRAIGHTFORWARD SHIPPING FEES - $9 flat rate shipping.
- WARRANTY - Lifetime warranty on the flagpole shaft is included with your purchase. See warranty statement for complete details.
- PLEASE NOTE - Flag is NOT included.
DETERMINE WHICH FLAGPOLE MODEL TO ORDER
Use the specifications below to determine which flagpole model will best meet your technical needs.
| SPECIFICATIONS - Vanguard Flagpoles | ||||||||||
| SKU | EXPOSED HEIGHT | OVERALL LENGTH | UNFLAGGED MAX. WIND SPEED | FLAGGED MAX. WIND SPEED | SUGGESTED FLAG SIZE | # OF SECTIONS | BUTT DIAMETER | TOP DIAMETER | WALL THICKNESS | SHIPPING WEIGHT |
| ECXV20 | 20' | 23' | 250 mph | 120+ mph | 3' x 5' | 1 | 5" | 3" | 0.125 | 129 lbs. |
| ECV20 | 20' | 23' | 315 mph | 120+ mph | 3' x 5' | 1 | 5" | 3" | 0.188 | 142 lbs. |
| ECXV25 | 25' | 27' | 144 mph | 104 mph | 4' x 6' | 1 | 5" | 3" | 0.125 | 139 lbs. |
| ECXAV25 | 25' | 27' | 192 mph | 117 mph | 4' x 6' | 1 | 5" | 3" | 0.156 | 152 lbs. |
| ECV25 | 25' | 27' | 222 mph | 120+ mph | 4' x 6' | 1 | 6" | 3-1/2" | 0.188 | 197 lbs. |
| ECXV30 | 30' | 33' | 110 mph | 75 mph | 5' x 8' | 1 | 5" | 3" | 0.125 | 172 lbs. |
| ECXAV30 | 30' | 33' | 119 mph | 91 mph | 5' x 8' | 1 | 5" | 3" | 0.156 | 185 lbs. |
| ECLV30 | 30' | 33' | 127 mph | 96 mph | 5' x 8' | 1 | 5" | 3" | 0.188 | 185 lbs. |
| ECAV30 | 30' | 33' | 184 mph | 117 mph | 5' x 8' | 1 | 6" | 3-1/2" | 0.156 | 224 lbs. |
| ECV30 | 30' | 33' | 211 mph | 120+ mph | 5' x 8' | 1 | 6" | 3-1/2" | 0.188 | 227 lbs. |
| ECSAV35 | 35' | 38-1/2' | 104 mph | 86 mph | 6' x 10' | 1 | 5" | 3" | 0.188 | 229 lbs. |
| ECXV35 | 35' | 38-1/2' | 122 mph | 91 mph | 6' x 10' | 1 | 6" | 3-1/2" | 0.156 | 247 lbs. |
| ECAV35 | 35' | 38-1/2' | 179 mph | 117 mph | 6' x 10' | 1 | 7" | 3-1/2" | 0.156 | 261 lbs. |
| ECV35 | 35' | 38-1/2' | 200 mph | 120 mph | 6' x 10' | 1 | 7" | 3-1/2" | 0.188 | 281 lbs. |
| ECXV40 | 40' | 44' | 125 mph | 91 mph | 8' x 12' | 2 | 7" | 3-1/2" | 0.156 | 294 lbs. |
| ECAV40 | 40' | 44' | 171 mph | 110 mph | 8' x 12' | 2 | 8" | 3-1/2" | 0.156 | 309 lbs. |
| ECV40 | 40' | 44' | 195 mph | 120 mph | 8' x 12' | 2 | 8" | 3-1/2" | 0.188 | 319 lbs. |
PICK A FINISH FOR YOUR FLAGPOLE
Unless noted otherwise, all finishes are anodized. (Anodizing is an electrochemical process that gives metal a more durable and corrosion-resistant finish.)
- Satin (not anodized)
- Clear
- Dark Bronze
- Black
SHIPMENT DETAILS
IMPORTANT: If your new flagpole will not be installed immediately upon delivery, be sure to store it in a dry location. If the outer tube and/or the wrappings get damp or wet, remove the tube and protective wrapping and place the unwrapped flagpole and parts at least 12” above grade. If this is not done, mold will develop and ruin the finish of the flagpole. The factory cannot assume responsibility for improperly stored flagpoles.
INCLUDED WITH YOUR SHIPMENT
- Flagpole
- Gold anodized aluminum ball ornament
- Revolving truck
- Nylon wire center halyard
- Swivel flag snaps w/vinyl snap covers
- Retainer ring and counterweight
- Stainless steel quick link
- Cam action cleat (accessible behind a lockable access door)
- Spun aluminum flash collar
- Galvanized steel foundation sleeve
